Plasma Nitriding vs Gas Nitriding: Differences and Advantages for Industrial Applications

  • Writer: redesiht
    redesiht
  • Oct 6
  • 2 min read

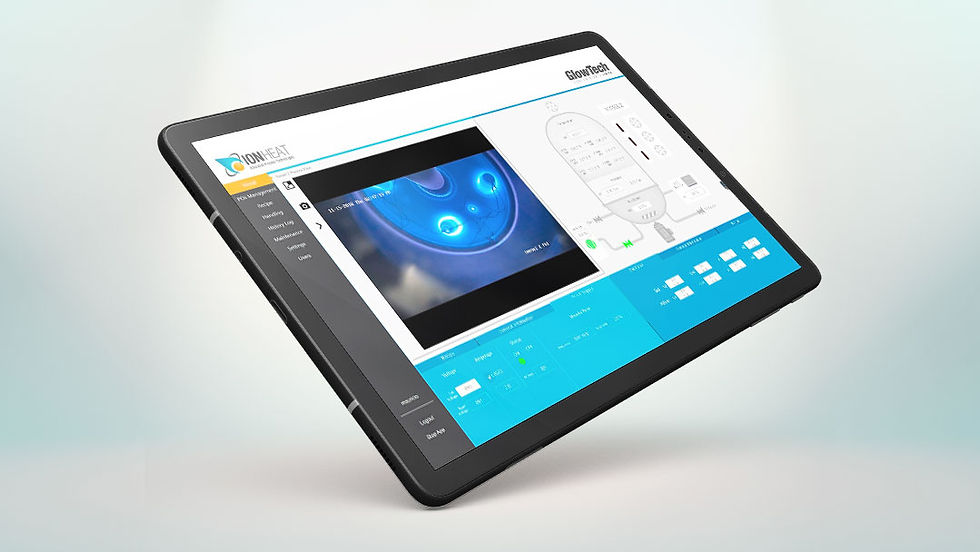

Real-time process monitoring interface of ION HEAT's plasma nitriding system, featuring PLC automation, web-based HMI, and remote monitoring options.
Interface of the ION HEAT plasma nitriding system, showcasing real-time monitoring and control of process variables, with easy access to process recipes and remote monitoring capabilities.


There are no absolute truths when it comes to determining which is better in the Plasma Nitriding vs Gas Nitriding debate, as it all depends on the specific process and part specifications. However, one thing is clear: almost all nitriding processes done with gas can be improved with plasma nitriding, offering three undeniable advantages: enhanced process control, repeatability of results, and a cleaner process.




Benefits of Plasma Nitriding over Traditional Gas Nitriding

Plasma-assisted nitriding enhances precision and efficiency, offering better control over process parameters, significantly reduced energy consumption, and the ability to treat a broader range of materials.


Improved Process Control for Repeatable Results

Plasma nitriding ensures precise control over the nitriding layer’s depth and composition, delivering repeatable metallurgical results. The process also enables surface masking and integrated sputtering—where ion bombardment not only nitrides but also cleans the part’s surface, expanding the range of materials that can be effectively treated.


Reduced Energy Consumption and Lower Operational Costs

Operating in a vacuum, plasma nitriding reduces the need for high-energy input. Compared to gas nitriding, it uses up to 50 times less gas, making it a more efficient long-term solution.


Material Versatility for Industries Like Aerospace and Automotive

Plasma nitriding is compatible with a wide array of materials, including stainless steels, titanium, nickel alloys, and metal additive manufactured parts. Its versatility makes it ideal for high-performance industries requiring durability and precision.


Extended Equipment Lifespan

Unlike gas nitriding systems, which rely on corrosive gases that break down the equipment over time, plasma nitriders use a cleaner process that minimizes wear and tear, ensuring the equipment won’t break down with use. This results in reduced maintenance costs and longer operational lifespans.


Plasma Nitriding vs Gas Nitriding / Expected Results: Dimensional Stability and Hardness

Plasma nitriding typically yields excellent results in terms of dimensional stability and hardness, with the following expected outcomes:

  • Nitrided Layer: 0.05 - 0.7mm (50–700 micrometers)

  • Hardness: 300 HV – 1400 HV

  • Dimensional Stability: Minimal to no dimensional changes, reducing the need for additional grinding.




Learn More About Nitriding Methods

For a more detailed comparison of nitriding technologies—including gas, salt bath, and plasma—check out our infographic, which breaks down the key differences in a concise and user-friendly format. This useful material is available for free download. https://www.ionheat.com/plasma-nitriding-fundamentals-1/what-is-the-best-nitriding-method%3F
